Machine Description
To required operator unload bottle in storage, unscrambler will automaticly sort bottle in certain direction and transfer it to covneyor. We use photo sensor to monitor all critical position. Speed can adjust through HMI.
-
Feature
l Stainsteel steel design, satisfied GMP requirement.
l PLC control，automatically stop if any jamming.
l Static cleaning-optional item.
l Foodgrade conveyor belt.
-
Machine Parameter
Item
Parameter
Note
Power
Three phase 380V 50Hz 2.5KW
Air source
0.6±0.1Pa 100L/min dry/clean air
Apply bottle size
Square bottle section:25-98mm、round bottle section25-98mm、height:45-200mm
Changeover parts required
Maximum speed
500 BPM
Related to bottle size

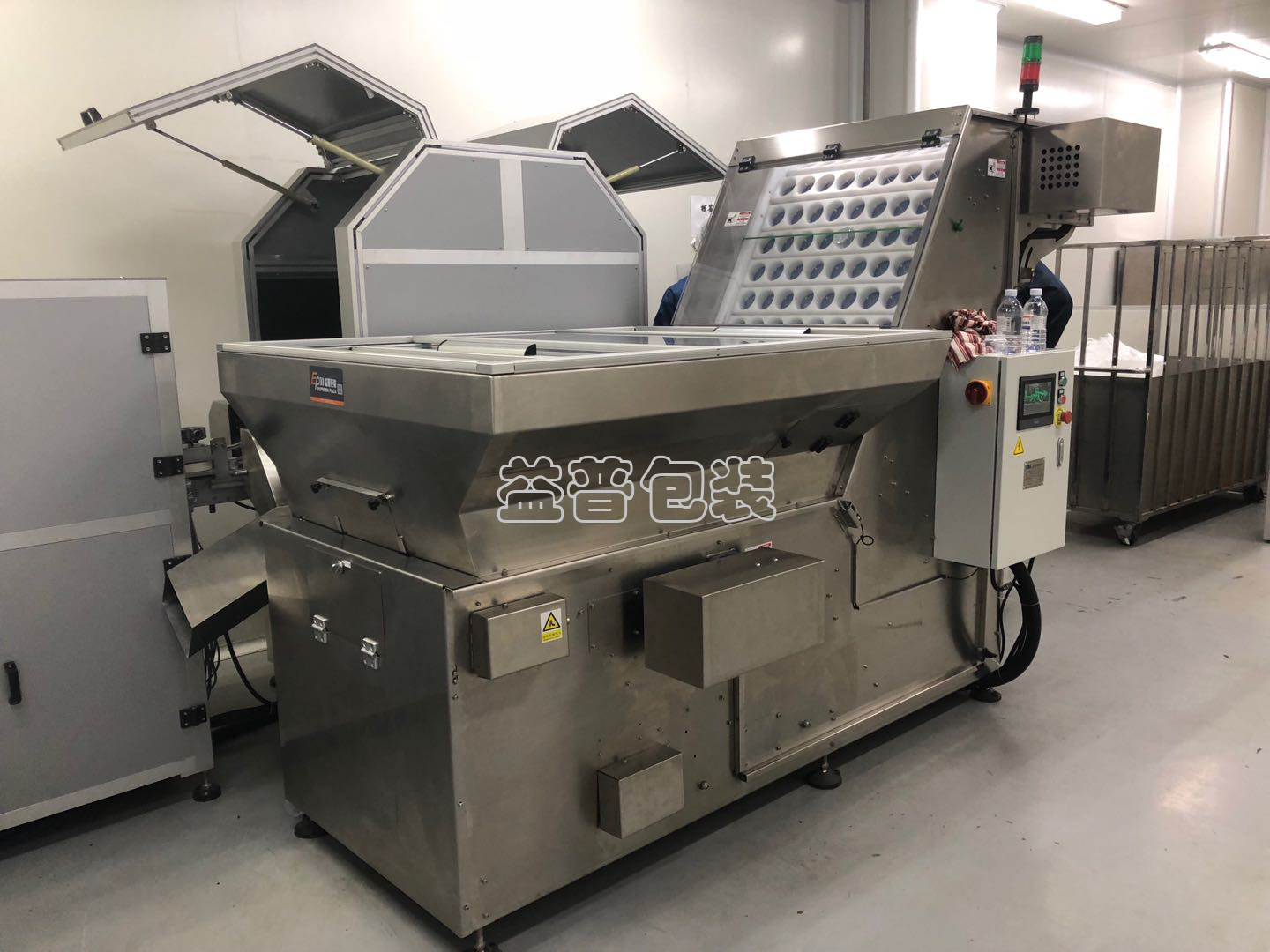

Waterfall Bottle Unscrambler
To required operator unload bottle in storage, unscrambler will automaticly sort bottle in certain direction and transfer it to covneyor. We use photo sensor to monitor all critical position. Speed ca
